Barrel Type Corrugation Machie
Descrition:
No 1: The barrel type corrugation machine is only used to roll thin sheet from 0.15mm to 0.4mm and max length can be 14 feet( 4267mm)
No 2:The material width can be 762mm(2.5feet),914mm(3 feet),1000mm and 1250mm
No 3:The material can be pre-painted steel,galvanized steel,galvalume and pre-painted galvanlume etc ,(G350Mpa to G550Mpa)
No 4:Finished product width:665mm for 762mm input
800mm for 914mm input
875mm for 1000mm input
Pitch width:76.2mm(+/-2mm)
Depth:18mm(+/-1.5mm)

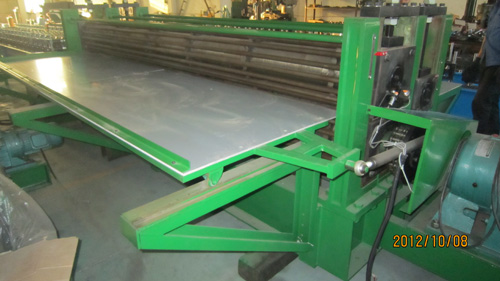

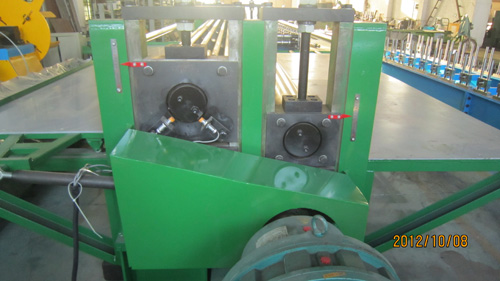

No 5:The uppper and bottom rolls for corrugation can be adjustable
No 6: We exported to this type machine to some South Eastern countries like Indonesia,Sri Lanka,Philippines ect

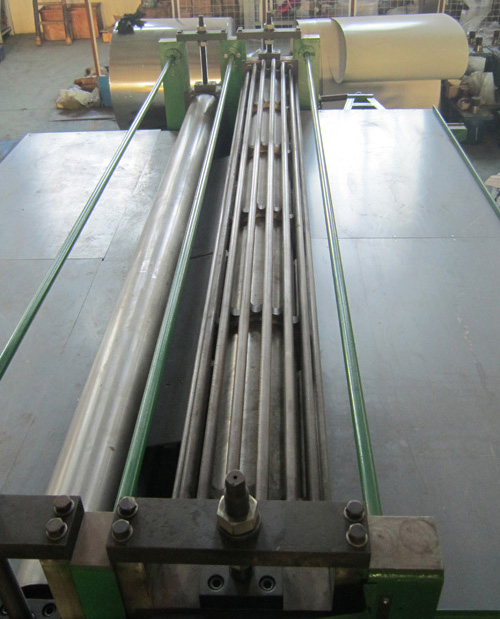

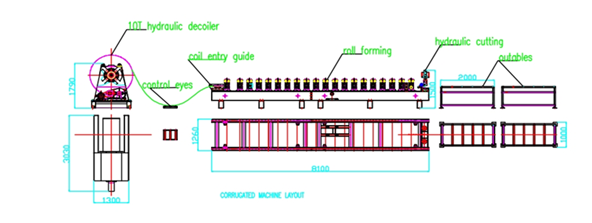

Flow Chart:

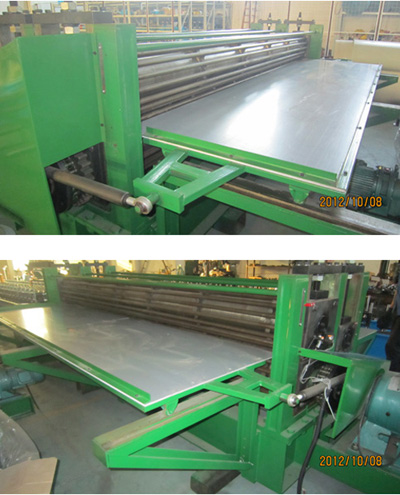

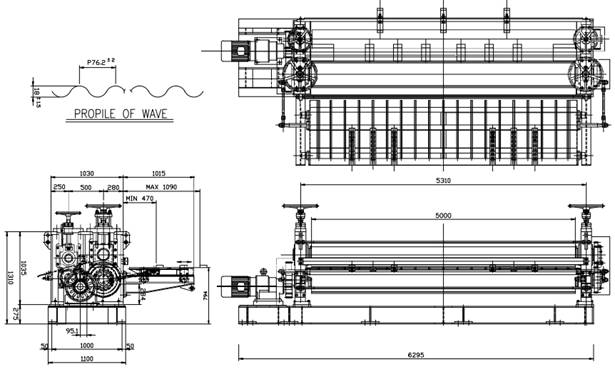

Profile drawing:
Specifications:
|
1 |
Material thickness |
mm |
0.15-0.4mm Full hard,G350Mpa--G350Mpa |
|
2 |
Forming speed |
R/min |
12 |
|
3 |
Roll station |
|
2 sets |
|
4 |
Main power |
kw |
11kw AC motor |
|
5 |
Coil width input |
|
762mm,914mm,,1000mm.1250mm |
|
6 |
Control system |
/ |
PLC panasonic/omron/simens/mitsubishi |
|
7 |
Power supply |
|
380v,50Hz,3ph |
|
8 |
Drive |
/ |
Chain drive |
