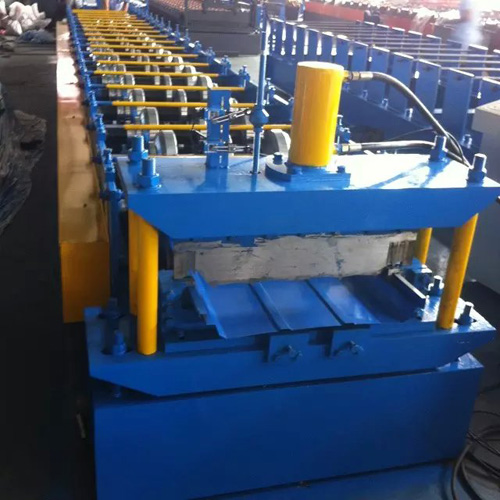

Standing Seam forming machine

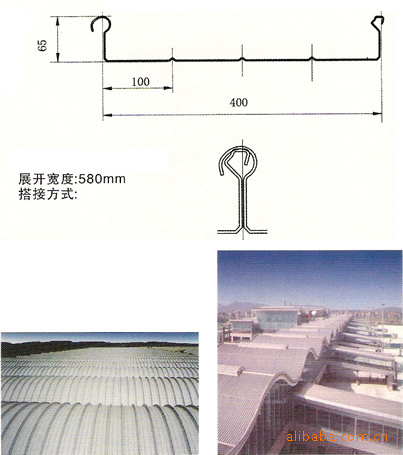

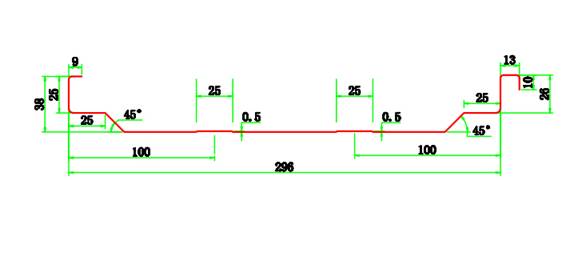

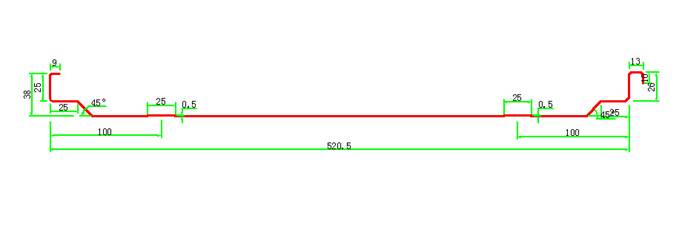

Drawing:

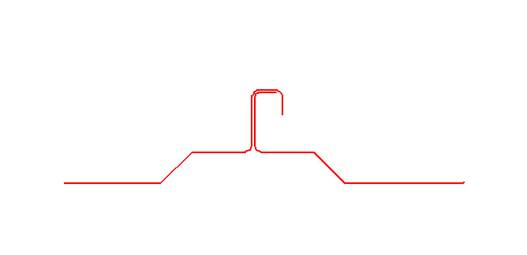

Overlapped drawing
Technical parameter
1 |
Material thickness |
mm |
0.4-0.9mm |
|
2 |
Forming speed |
m/min |
0-20 |
|
3 |
Roll station |
station |
12 |
|
4 |
Main power |
kw |
7.5 |
|
5 |
Hydraulic Power |
kw |
4 |
|
6 |
Control system |
/ |
PLC panasonic/omron/simens/mitsubishi |
|
7 |
Power supply |
|
380v,50Hz,3ph |
|
8 |
Drive |
/ |
Chain drive |
Flow chart
manual decoiler—feeding—roll forming—hydraulic cut-off—outables

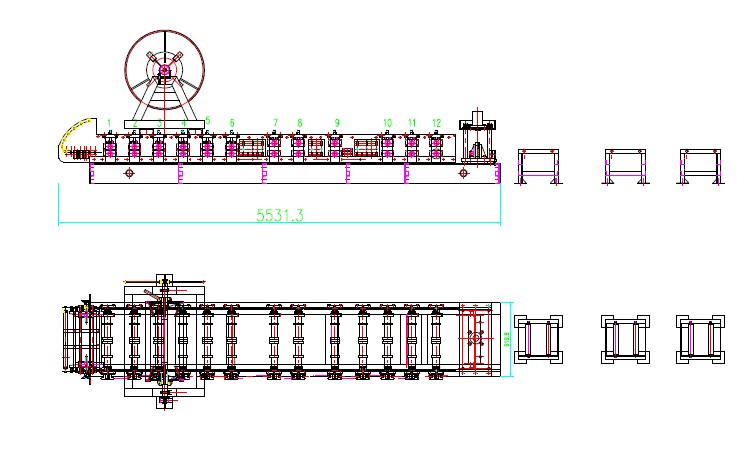

components of the whole line
|

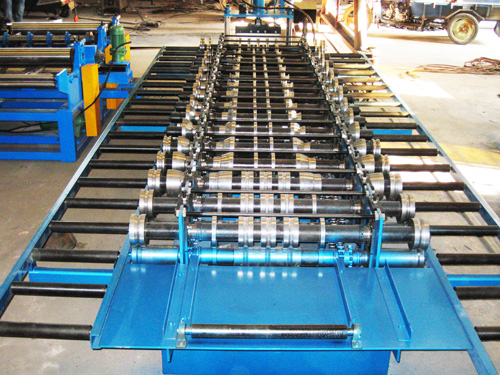

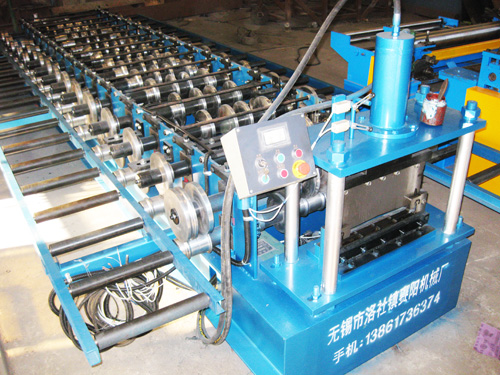

main roll forming machine |
1pc |
|
5T Manual decoiler |
1pc |
|
Hydraulic station |
1pc |
|
PLC cabinet |
1pc |
|
production output tables |
2 pcs |
|
Cutting blades |
2 sets |
|

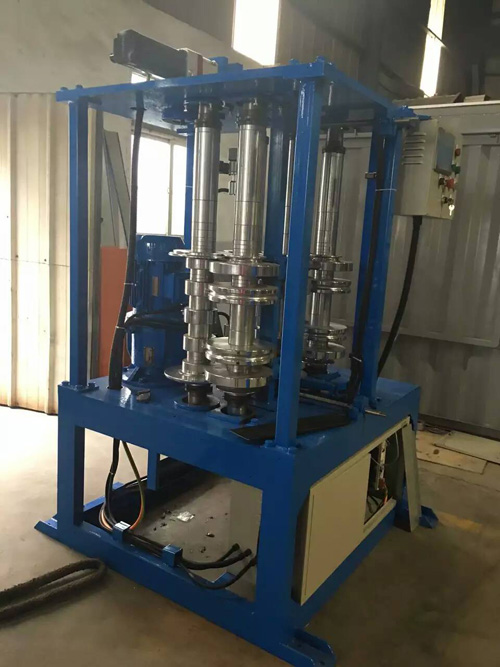

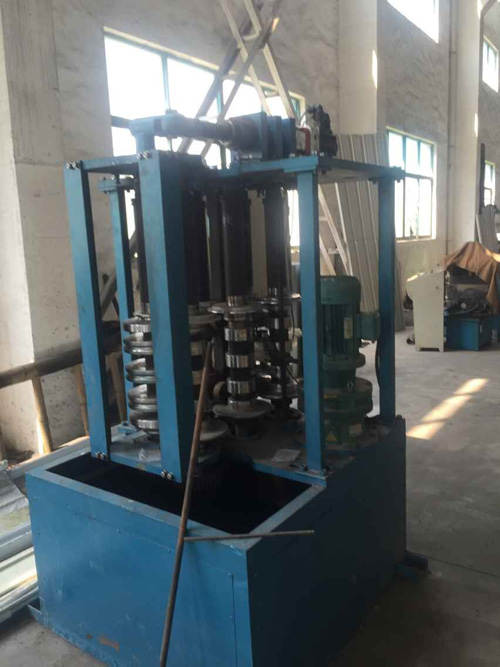

Seamer machine |
1 pc |
|

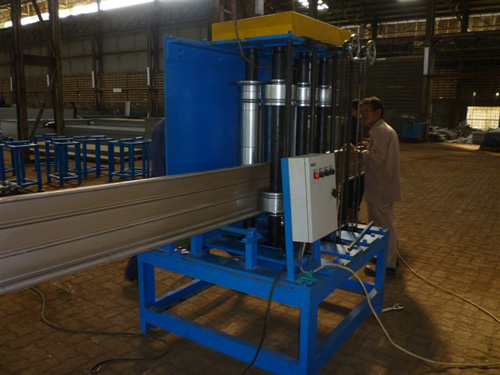

Curving machine |
1 set |
