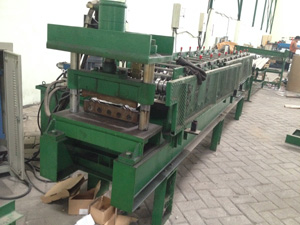

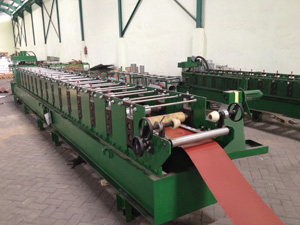

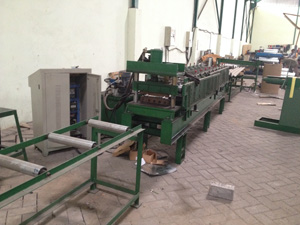

Ridge Cap Forming Machine

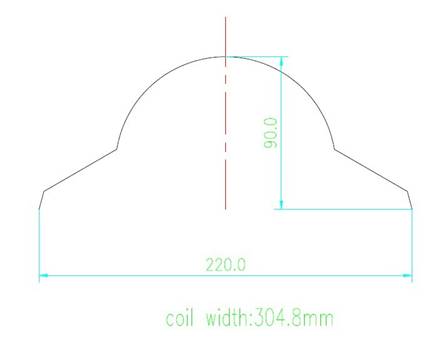

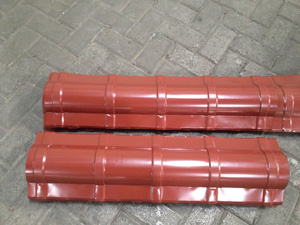

Profile Drawing:
Main Technical specifications:
NO. |
Items |
Unit |
Main specification |
|
1 |
Material thickness |
mm |
0.4-0.6 |
|
2 |
Forming speed |
m/min |
18 |
|
3 |
Roll station |
/ |
16 stations(depend on the profile) |
|
4 |
Main power |
kw |
4 |
|
5 |
Hydraulic power |
kw |
3 |
|
6 |
Control system |
/ |
PLC, panasonic/Siemens |
|
7 |
Drive |
/ |
by chain |
|
8 |
Way of decoiler |
|
3 manual decoiler |

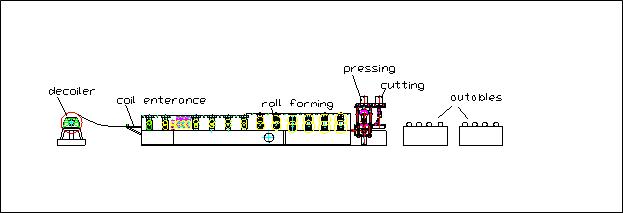

Flow chart:
manual decoiler—feeding—forming—pressing----cutting—product
