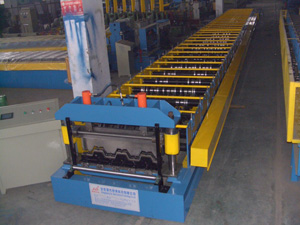

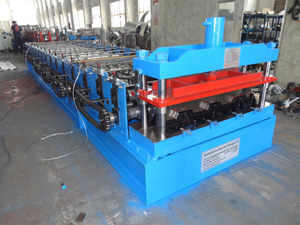

76-900 Full Automatic Metal Deck Forming Machine

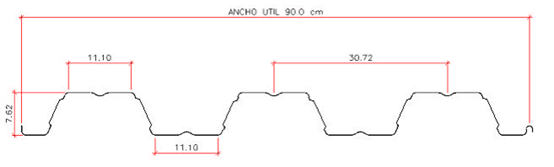

Profile Drawing:

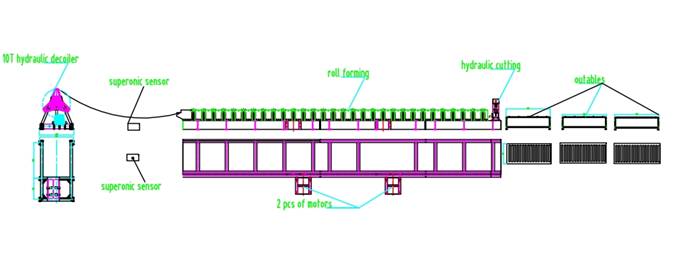

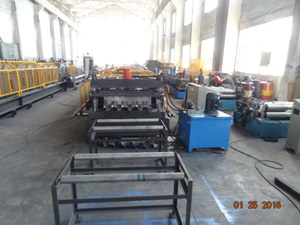

Working Flowchart:(from left to right)
10T hydraulic decoiler→Guiding→Roll forming→hydraulic cutting→Outables
Specification:
NO. |
Items |
Unit |
Main specification |
|
1 |
Material thickness |
mm |
1.5-2,5 |
|
2 |
Structure |
/ |
Wall panel structure |
|
3 |

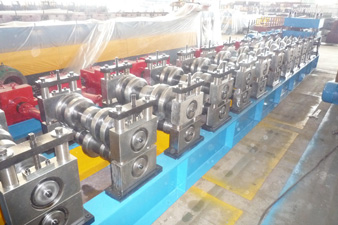

Roll station |
/ |
35 stations |
|
4 |
Main power |
kw |
11 |
|
5 |
Hydraulic power |
kw |
7.5 |
|
6 |
Control system |
/ |
PLCpanasonic/omron/simens/mitsubishi |
|
7 |
Drive |
/ |
Chain drive |
|
8 |

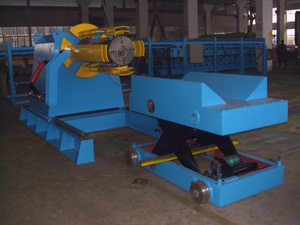

Decoiler |
10T |
hydraulic decoiler |
