High-Rib Deck Machine
Specifications:
NO. |
Items |
Unit |
Main specification |
|
1 |
Material thickness |
mm |
0.7-1.5 |
|
2 |
Forming speed |
m/min |
12-20 |
|
3 |
Roll station |
/ |
50 stations |
|
4 |
Main power |
kw |
2-18.5 |
|
5 |
Hydraulic power |
kw |
7.5 |
|
6 |
Control system |
/ |
PLCpanasonic/omron/simens/mitsubishi |
|
7 |
Drive |
/ |
Chain drive |
|
8 |
Decoiler |
15T |
hydraulic decoiler |

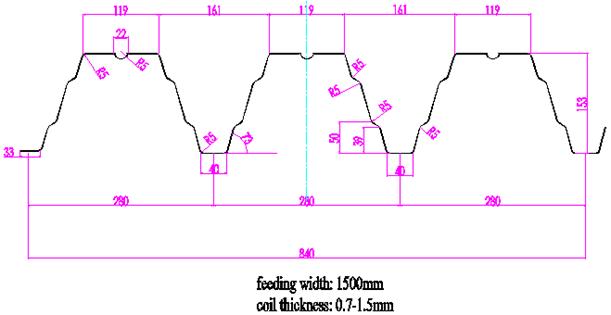

Profile Drawing:

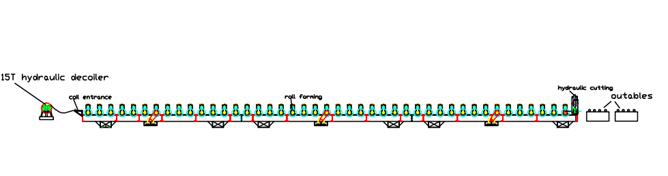

Flowchart:
15T hydraulic decoiler→Guiding→Roll forming→hydraulic cutting→outables
