UC purlin Machine

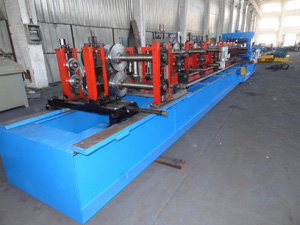

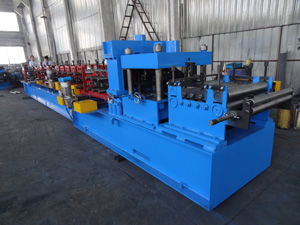

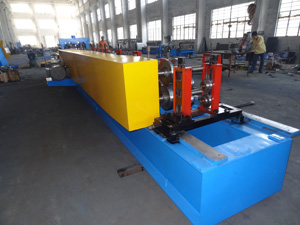

Composition of machine

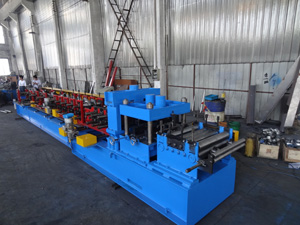

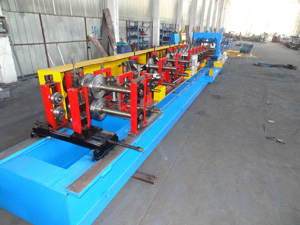

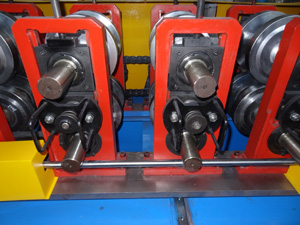

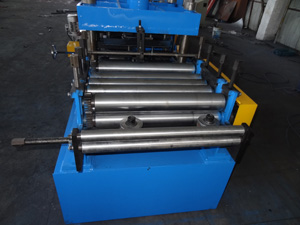

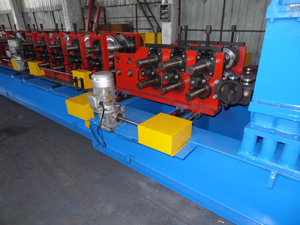

Roll forming main machine…………………………….1 unit
5 Tons manual de-coiler…………………………………1 unit
PLC Control panel……………………………………………1 unit
Hydraulic station…………………………………… …1 unit
Manual out table……………………… ……………….2 unit
Spare tools……………………………………………...one set
The Profile

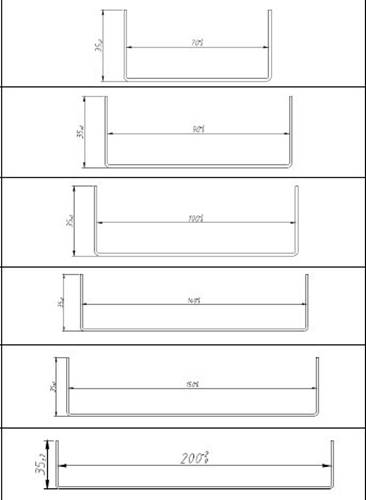

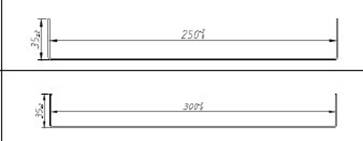

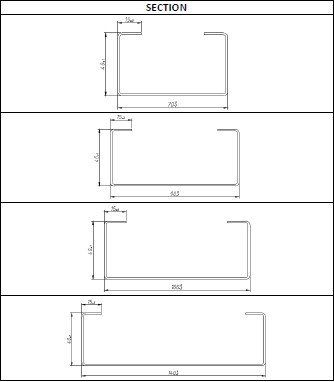

C profiles with punching:

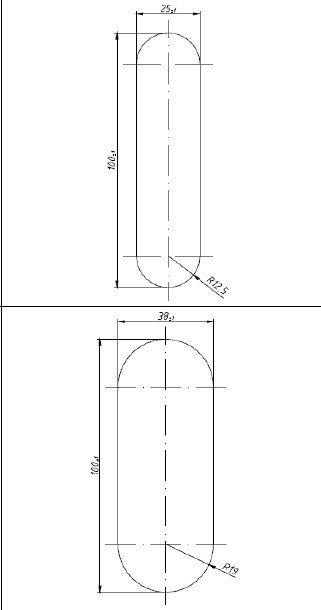

Holes punching drawing:
Flow chart:
|
NO. |
Items |
Unit |
Main specification |
|
1 |
Material thickness |
mm |
1.5-3.0 |
|
2 |
Forming speed |
m/min |
12-15 |
|
3 |
Roll station |
/ |
14stations(depend on the profile) |
|
4 |
Main power |
kw |
18.5 |
|
5 |
Hydraulic power |
kw |
7.5 |
|
6 |
Control system |
/ |
PLCpanasonic/omron/simens/mitsubishi |
|
7 |
Drive |
/ |
Chain drive |
|
8 |
Decoiler |
5T |
Manual |
