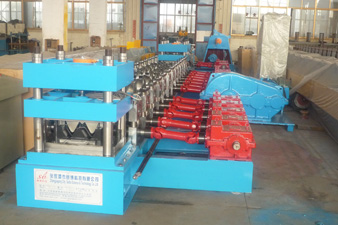

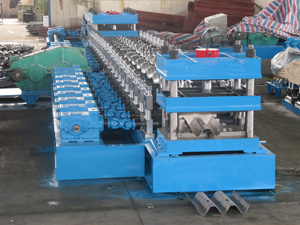

M-Beam Guardrail Forming Machine

Flow Chart:

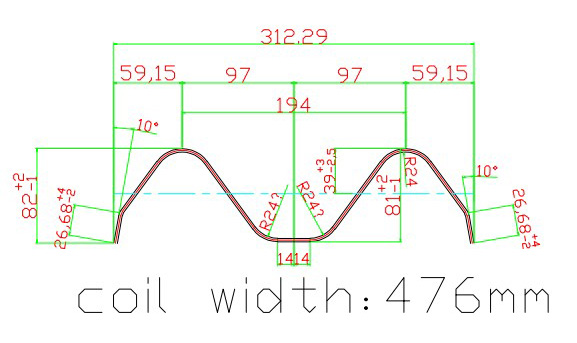

The profile:

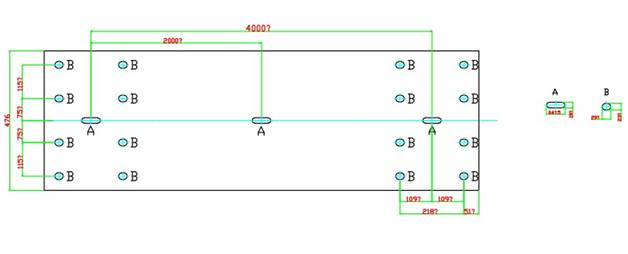

Holes size punching:

Specifications:
1.main motor power: 45kw
2.Decelerating motor: BWD14-43-37kw, made in Shanghai or
Changzhou

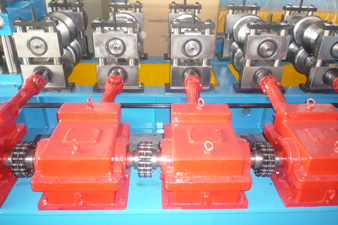

3.drive: joint coupling drive( gearbox for each roller station see picture below)
4.main shaft dia: ￠100mm   material: 45﹟forge steel
5.roller material: GCR15 quenched 58°-62°,chromed

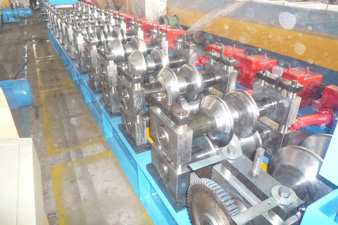

6.roll station:13stations
7.Working speed:5m--12m/min(not including punching)
8.Transducer: Panasonic /Yaskawa made in Japan. 380V 50HZ
9.Way of control: PLC,Panasonic
10.Computer operating panel:MSG touching screen made in Taiwan
