End Bent Roofing Tile Machine Line

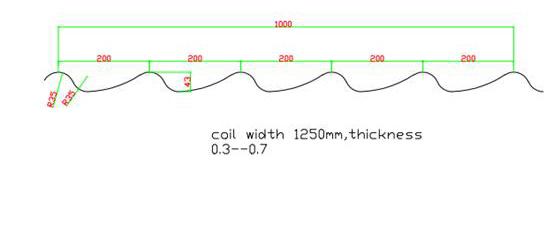

Drawing:
Main Technical specifications:
NO. |
Items |
Unit |
Main specification |
|
1 |
Suitable Material |
mm |
0.35-0.75mmx 1219mm |
|
2 |
Forming speed |
m/min |
12--15 |
|
3 |
Roll station |
/ |
17 stations(depend on the profile) |
|
4 |
Main power |
kw |
7.5 |
|
5 |
Hydraulic power |
kw |
4 |
|
6 |
Control system |
/ |
PLC, panasonic/Siemens |
|
7 |
Drive |
/ |
by chain |
|
8 |
Way of decoiler |
|
5T manual decoiler |

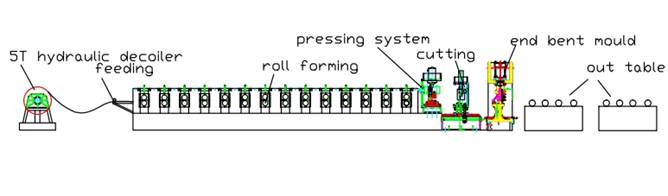

Flowchart:
5 hydraulic decoiler---Guiding---Film covering--- Roll forming machine-- pressing----hydraulic cutting--End bent pressing- Output tables
