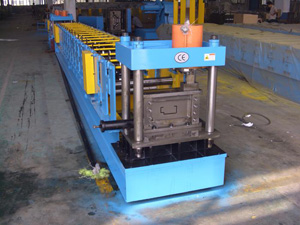

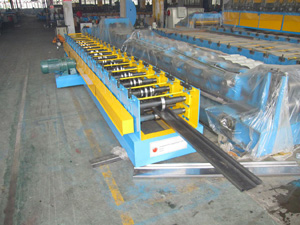

Door Frame Machine

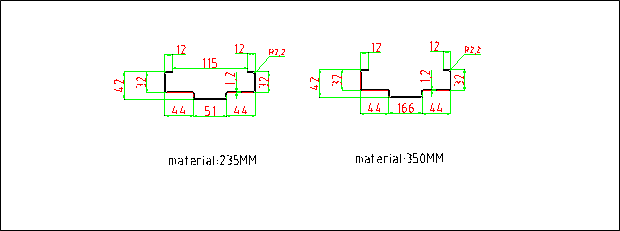

Profile drawing:
The thickness is 0.6mm--1.2mm cold rolled steel or gavanized steel G350Mpa

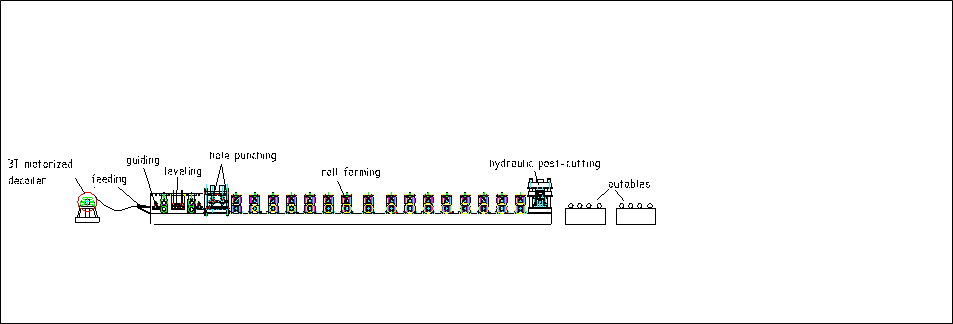

The flowchart of the machine:
Specifications:
|
1 |
Material thickness |
mm |
0.6-1.2mm Full hard,G550Mpa |
|
2 |
Forming speed |
m/min |
12-15 |
|
3 |
Roll station |
/ |
19 |
|
4 |
Main power |
kw |
11 |
|
5 |
Cutting power |
kw |
7.5 |
|
6 |
Control system |
/ |
PLC panasonic/omron/simens/mitsubishi |
|
7 |
Drive |
/ |
Chain drive |
|
8 |
Decoiler |
3 |
3T manual decoiler |
