High-speed Flying Shear Panel Forming Line

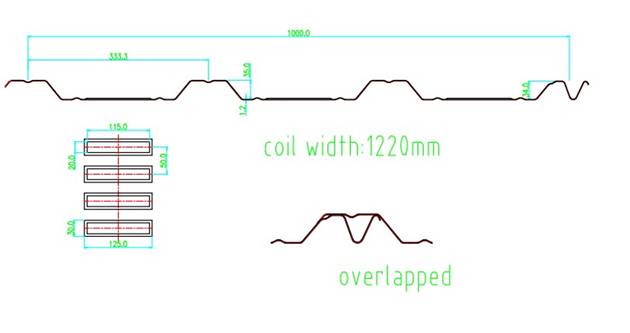

Drawing:
Specification:
1 |
Material thickness |
mm |
0.4-0.8mm Full hard,G550Mpa |
|
2 |
Forming speed |
m/min |
45 |
|
3 |
Roll station |
/ |
26 |
|
4 |
Main power |
kw |
2-11 |
|
5 |
Hydraulic power |
kw |
11 |
|
6 |
Way of cutting |
|
Flying shear |
|
7 |
Control system |
/ |
PLC panasonic/omron/simens/mitsubishi |
|
8 |
Drive |
/ |
Chain drive |
|
8 |
Decoiler |
|
0T/15T hydraulic decoiler ( coil car as option) |

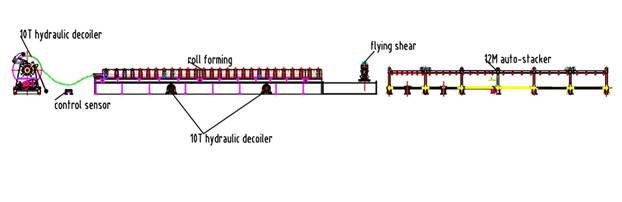

Flowchart:
