C Beam Forming Machine

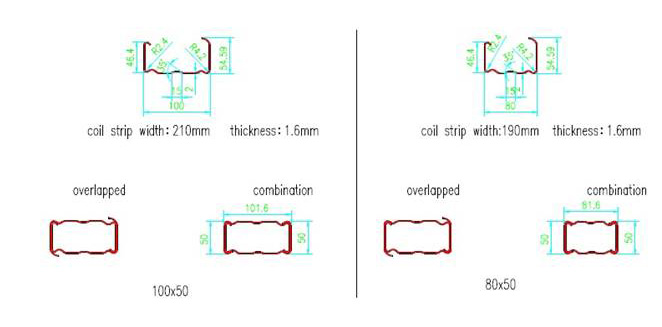

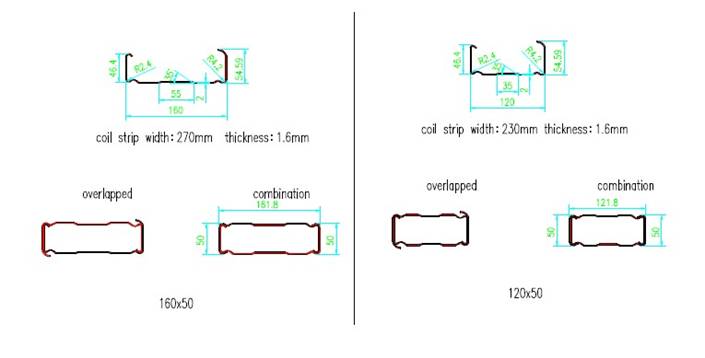

Profiles Drawing:

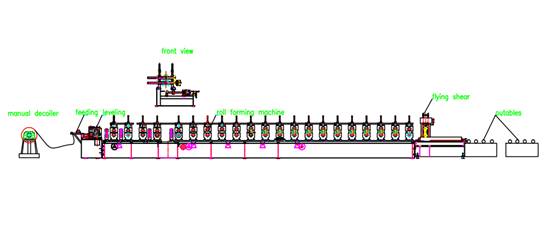

Flow chart:
manual decoiler--feeding&leveling----sheet forming--hydraulic shearing-outables--beams combination machine

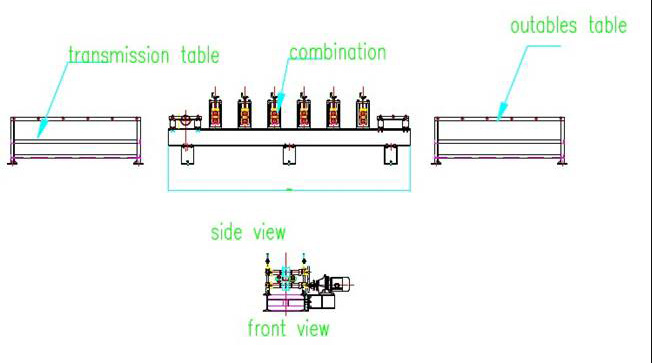

Beams combination machine:
Main specification:
NO. |
Items |
Unit |
Main specification |
|
1 |
Material thickness |
mm |
1.5-2,5 |
|
2 |
Forming speed |
m/min |
12-20 |
|
3 |
Roll station |
/ |
19 stations |
|
4 |
Main power |
kw |
11 |
|
5 |
Hydraulic power |
kw |
5,5 |
|
6 |
Control system |
/ |
PLCpanasonic/omron/simens/mitsubishi |
|
7 |
Drive |
/ |
Chain drive |
|
8 |
Decoiler |
5T |
Manual |
