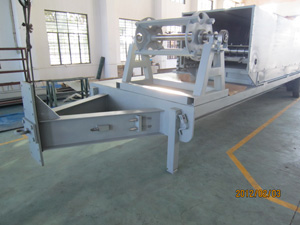

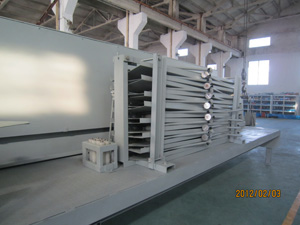

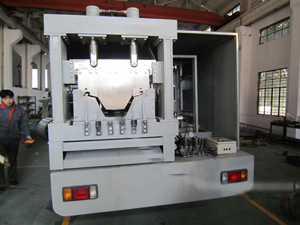

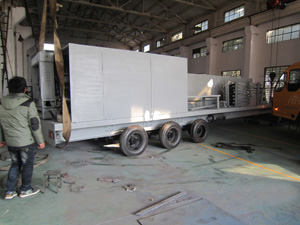

MIC120 K-SPAN CURVED MACHINE

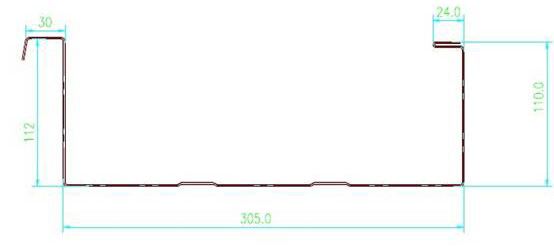

Drawing:

Technical parameter:

• Width of input material width: 610mm
• The width after forming: 305mm
• Thickness of material: 0.7-1.5mm
• Roller forming station: 14stations
• Diameter of shaft: ￠60mm
• Drive for the machine :7.5kw
• Size of roll forming machine: approx 6.m*1.2m*1.6m
• Hydraulic station: 5.5 KW
• Material of cutting blade: Cr12
• Transmission:1.2inch chain drive
• Material of roller:45# forge steel,quenching and hard chrome HRC58○-62○ Chrome coated 0.05mm
• Control system:  PLC control, Omron/Mitsubishi made in Japan
• Way of cutting:hydraulic cutting

Flow chart:
Manual decoiler—feeding—roll forming—hydraulic cut-off—outables
