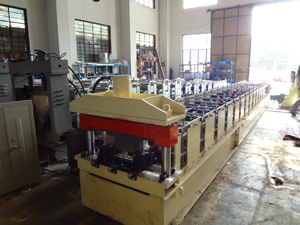

BK460 machine

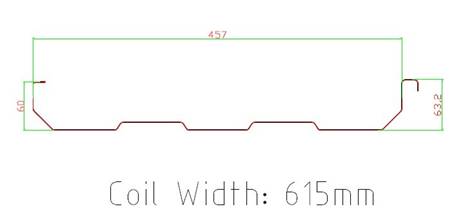

Profile Drawing:
Technical parameter:
NO. |
Items |
Unit |
Main specification |
|
1 |
Material thickness |
mm |
0.4-0.9 |
|
2 |
Width of raw material |
mm |
615 |
|
3 |
Roll station |
/ |
16 stations |
|
4 |
Main power |
kw |
5.5 |
|
5 |
Hydraulic power |
kw |
4 |
|
6 |
Control system |
/ |
PLCpanasonic/omron/simens/mitsubishi |
|
7 |
Drive |
/ |
Chain drive |
|
8 |
Decoiler |
5T |
Manual |

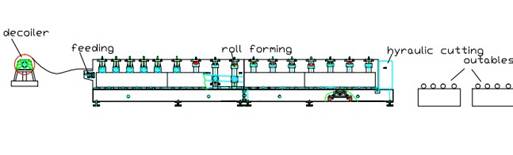

Flow chart:
Manual decoiler—feeding—roll forming—hydraulic cutting—product
components of the whole line:
|
main roll forming machine |
1pc |
|
Manual decoiler |
1pc |
|
Hydraulic station ( |
1pc |
|
PLC cabinet |
1pc |
|
production output table |
2 pcs |
|
Seaming machine |
1pc |
