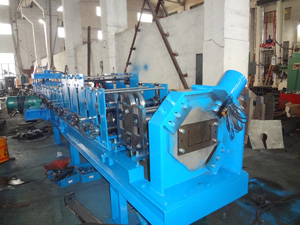

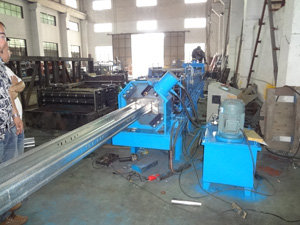

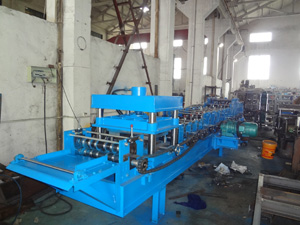

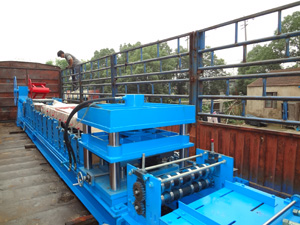

Manual adjustment Cable Tray forming machine

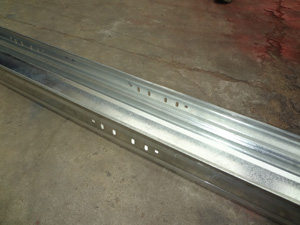

Profile show ：
Specification:
1 |
Material thickness |
mm |
1.0-1.5 |
|
2 |
Forming speed |
m/min |
3-5 |
|
3 |
Roll station |
/ |
14 |
|
4 |
Main power |
kw |
7.5 |
|
5 |
Hydraulic power |
kw |
5.5 |
|
6 |
Control system |
/ |
PLC panasonic/omron/simens/mitsubishi |
|
7 |
Drive |
/ |
Chain drive |
|
8 |
Decoiler |
5T/10T |
5T/10T/15T hydraulic decoiler ( coil car as option) |

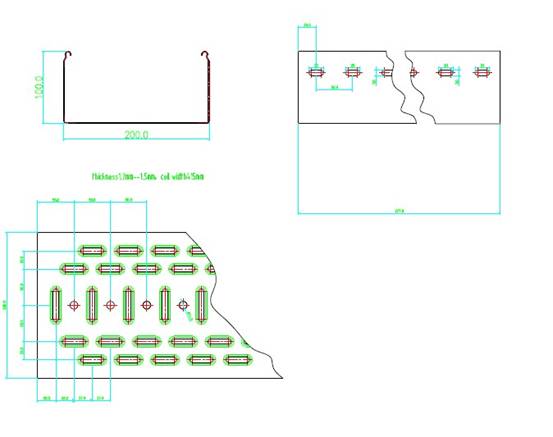

Profile Drawing：

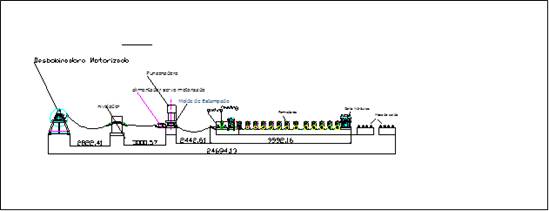

Flow Chart
